 | 5 years Standard Warranty |
 | 7 years Extended Warranty |
 | 4000V Surge Protection(L-GND) |
 | 0-10V/DALI Dimmable Built-in |
with stand-by dimming and day light threshold
|
   |

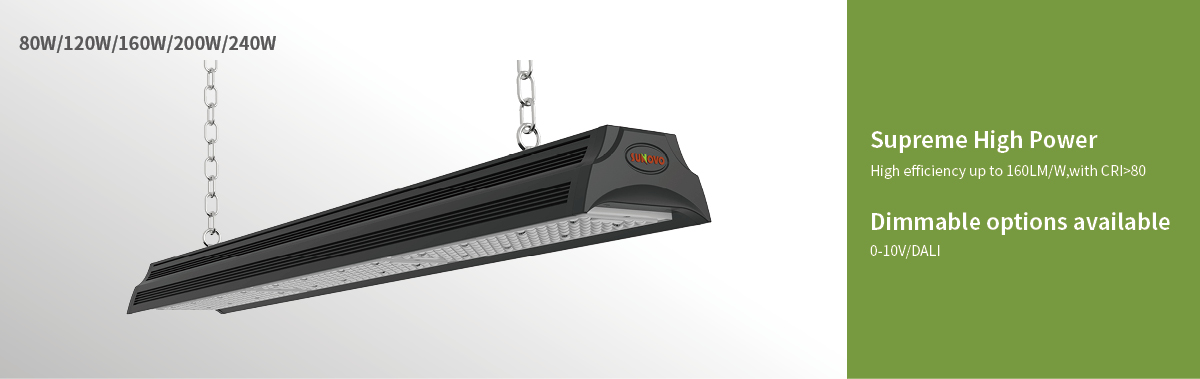

| Model | OR80 | OR120 | OR160 | OR200 | OR240 | OPEK |
| Product Size | 613*136*72MM | 900*136*72MM | 1185*136*72MM | 1470*136*72MM | 1756*136*72MM | 218*136*72MM |
| Power | 80W | 120W | 160W | 200W | 240W | 8W |
| Luminous Flux | 12800LM | 19200LM | 25600LM | 32000LM | 38400LM | 1040LM |
| Efficacy | 160LM/W | 160LM/W | 160LM/W | 160LM/W | 160LM/W | 130LM/W |
| Power Supply | MEANWELL XLG | MEANWELL XLG | MEANWELL XLG | MEANWELL XLG | MEANWELL XLG | Emergency |
| LED Brand | Hongli | Hongli | Hongli | Hongli | Hongli | Hongli |
| Input Voltage | AC100-305V | AC100-305V | AC100-305V | AC100-305V | AC100-305V | AC220-240V |
| Beam Angle | 30x60°/60x90° /90°/120° | 30x60°/60x90° /90°/120° | 30x60°/60x90° /90°/120° | 30x60°/60x90° /90°/120° | 30x60°/60x90° /90°/120° | 30x60°/60x90° /90°/120° |
| Ra | >80 | >80 | >80 | >80 | >80 | >80 |
| Dimmable | Optional(0-10V) or (Dali) | Optional(0-10V) or (Dali) | Optional(0-10V) or (Dali) | Optional(0-10V) or (Dali) | Optional(0-10V) or (Dali) | / |
CCT(K) | 4000K/5000K/5700K | 4000K/5000K/5700K | 4000K/5000K/5700K | 4000K/5000K/5700K | 4000K/5000K/5700K | 4000K/5000K/5700K |
| Lifetime(Hr) | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours |
| Certificate | TUV-CE,ROHS,CB,ENEC | TUV-CE,ROHS,CB,ENEC | TUV-CE,ROHS,CB,ENEC | TUV-CE,ROHS,CB,ENEC | TUV-CE,ROHS,CB,ENEC | TUV-CE,ROHS,CB,ENEC |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
Operating Temperature | -25℃~50℃ | -25℃~50℃ | -25℃~50℃ | -25℃~50℃ | -25℃~50℃ | -25℃~50℃ |
